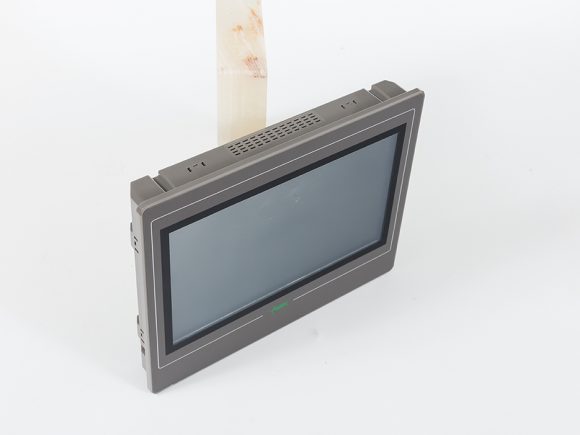

AST-080KHS40



Display type：TFT color touch screen (LED backlight), 65536 colors TFT LCD with LED Backlight, Max. colors 16-bit

(hr) Backlight life： 20000小时/hrs

(cd/m2) Display contrast：      250:1

ernet:      1/2:N/A  4:（10/100M ）
Serial iterface:     COM1:RS232/RS422/RS485  COM2:N/A   COM3:RS232 （RS485）
USB:        1主host（USB1.0),1客slave（USB2.0)
(Data File) Data memory        :   1:N/A    2/4:128M
Input voltage:      24VDC±10%
 Panel size(w * h, mm):     231.5*174.5

 Cutout dimension(A*B mm):  221.0*164.0

  • Industrial HMIOEM Customization

    Various forms

    1. All-in-one: HMI+PLC
    2. Front USB interface
    3. Front function keys
    4. Customization external keyboard
    5. Hand-held design
    6. VESA installation design
    7. Bare computer supply
    8. Accept customization

    Rich interface options

    1. Ethernet
    2. Micro SD socket
    3. RS232 serial port
    4. RS485/422 serial port
    5. Audio output interface
    6. Image input interface
    7. CAN bus interface
    8. VNC network remote monitoring
    9. U disk, USB download,
    USB mouse, USB keyboard,
    USB printer, etc. ge input interface



  •

    Series:   K
    Model Type：  AST-080K
    Size of the Size：   8″
    Resolution Max. Resolution： 800*600
    Display type Display type：TFT （LED ）, 65536， TFT LCD with LED Backlight ,Max. colors 16-bit
    Hr Backlight life：20000  /hrs
    CD /m2 Display contrast：250:1
    Touch the Touch panel： 4-wire analog touch panel
    CPU central processing unit：ARM926EJ-S RISC ARM9 32Bit
    Graphics accelerator Graphics accelerator： 2D engine graphics accelerator
    Battery memory Backup SRAM：128KB  、10:N/A 、20:128KB  、 128KB
    Working memory (OS) Working memory：64MB 32M
    Application memory (AP) Program memory：8MB
    Data File Data memory：128M    10:N/A     20:128M      N/A
    Micro SD card expansion slot Micro SD slot：N/A
    Calendar (clock) real-time clock(RTC)： Yes（disposable batteries, use time of 3 years）
    Max screen：Within 30 pages
    Macro： Max. 100 line macro instruction
    A Serial port Serial interface：COM1:RS232 COM2:RS422/485 COM3:RS485 (DB9) 注1
    USB：1  master,1 Slave(USB2.0)
    State Ethernet：1/2:N/A   4:（10/100M ）
    The Front function keys：N/A
    Front USB Front USB：N/A
    Input voltage：24VDC±10%
    Power-on power Consumption：20W    20W     15W         5W
    Operating temperature：0-50℃
    Storage temperature：-20-60℃
    Relative humidity：10%-90%
    Front panel waterproof and dustproof grade Ingress protection：NEMA4/IP65
    Resistance to shock vibration：10-55Hz( X, Y, Z three axial, 1G, 30 minute shock test)
    EMI：FCC Part 15 Class A
    CE：EN61000-6-2,EN61000-6-4
    Cooling method：Natural cooling
    Panel size(w * h, mm)    231.5*174.5
    Cutout dimension (A*B mm)：   221.0*164.0
