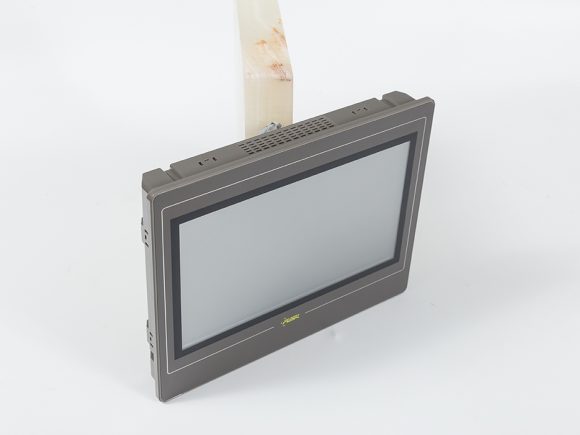

AST-070KHS10

The Model Type: AST – 070 k

Size of the Size: 7″

Resolution: 800*480

Display type Display type: TFT color touch screen (LED Backlight), 65536 TFT LCD with LED Backlight, max.colors 16-bit

Hr Backlight life: 20000 hours/HRS 50000 hours/HRS

CD /m2 Display contrast: 280:1 model type: ast-070k

Size: 7

Max’s resolution.Resolution :800 * 480

Display type display type :TFT color touch screen (LED backlight),65536 TFT LCD and LED backlight, Max.16-bit color

Human resource backlight life :20000 hours / 50000 hours/hour

CD/m2 display contrast: 280:1

Touch panel: 4-wire resistance 4-wire analog touch panel

Central processing unit: arm926ej-s 32-bit RISC ARM9 32-bit

Graphics accelerator: a 2-d engine graphics accelerator

Battery memory backup SRAM:10:n/a, 20:128kb

Working memory (OS) working memory: 32 M

Application memory (AP) program memory: 8 MB

Data file data storage: 10:n/a 20:128m

Microsd card slot expansion slot: n/a

Calendar (clock) real-time clock (RTC): available (disposable battery, 3 years of use) yes (disposable battery, 3 years of use)

Max screen :30 frames to within 30 pages

Macro: up to 100 lines macro command Max.100 lines macro

A serial port serial port :COM1:RS232 COM2: rs422/485 COM3:RS485(DB9) note 1

USB:1 master,1 guest slave (0)

State Ethernet :1/2 N/A 4: yes (10/100m)

The previous function key :N/A

Front USB USB:N/A

Input voltage :24 VDC plus or minus 10%

Power consumption to connect power supply :15 w

Operating temperature: 0 to 50 ℃

Storage temperature: 20 ℃

Relative humidity :10% -90%

Front panel waterproof and dustproof class Ingress protection: NEMA4/IP65

Shock resistance: 10-55hz (X,Y,Z triaxial,1 g,30 min vibration test X,Y,Z triaxial,1 g,30 min impact test)

EMI:FCC level 15, class A

CE: EN61000 EN61000-6-2-6-4

Cooling method: natural cooling

Panel size (w h, mm) : 204.4 151.0

Interrupting dimension (A * B mm):191.5 * 138.0

Touch the Touch panel: 4 wire resistance 4-wire analog Touch panel

CPU central processing unit: arm926ej-s 32-bit RISC ARM9 32Bit

Graphics accelerator Graphics accelerator: 2D engine Graphics accelerator

Battery memory Backup SRAM: 10:N/A, 20:128kb

Working memory (OS) Working memory: 32M

Application memory (AP) Program memory: 8MB

Data File Data memory: 10:N/A 20:128m

Micro SD card expansion slot Micro SD slot: N/A

Calendar (clock) real time clock(RTC) : Yes (disposable batteries, use time of 3 years)

Max screen: Within 30 pages of 30 screen

Macro: Max. 100 line Macro instruction

A Serial port Serial interface: COM1:RS232 COM2: rs422/485 COM3:RS485 (DB9) note 1

USB: 1 master,1 passenger Slave(USB2.0)

State Ethernet: 1/2:N/A 4: yes (10/100 m)

The Front function keys: N/A

Front USB Front USB: N/A

The Input voltage: 24 VDC plus or minus 10%

Power – on Power Consumption: 15 w

Operating temperature: 0 to 50 ℃

Storage temperature: – 20 to 60 ℃

Relative humidity: 10% 90%

Front panel waterproof and dustproof grade Ingress protection: NEMA4/IP65

Resistance to shock vibration: 10-55hz (X,Y,Z triaxial, 1G, 30-minute vibration test X,Y,Z three axial, 1G, 30 minute shock test)

EMI: FCC Part 15 Class A

CE: EN61000-6-2, EN61000-6-4

Cooling method: Natural Cooling

Panel size(w * h, mm) : 204.4*151.0

Cutout dimension (A*B mm) : 191.5*138.0
