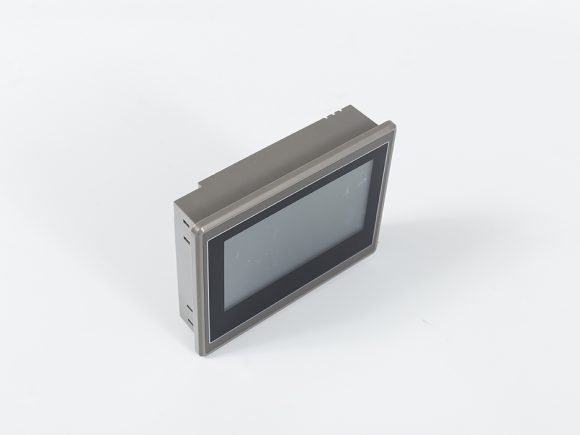

AST-100K

Negotiable

Size:       10″
Display type:  TFT color touch screen (LED backlight),65536色 TFT LCD with LED Backlight ,Max. colors 16-bit
Backlight life(hr):      20000 hours /hrs
Working memory(OS): 32M
(AP) Program memory:          8M
(Data File) Data memory        :    10:N/A     20:128M
Serial interface:     COM1:RS232/422/485  COM2:N/A   COM3:RS232（optional RS485）
USB :  1host（USB1.0),1slave（USB2.0)
Ethernet:      1/2:N/A   4:yes（10/100M ）
Input voltage       :   12-24VDC±10%
Panel size(w * h, mm):   270.1*212.1
 Cutout dimension(A*B mm)         :       259.5*201.5

  • Industrial HMIOEM Customization

    Various forms

    1. All-in-one: HMI+PLC
    2. Front USB interface
    3. Front function keys
    4. Customization external keyboard
    5. Hand-held design
    6. VESA installation design
    7. Bare computer supply
    8. Accept customization

    Rich interface options

    1. Ethernet
    2. Micro SD socket
    3. RS232 serial port
    4. RS485/422 serial port
    5. Audio output interface
    6. Image input interface
    7. CAN bus interface
    8. VNC network remote monitoring
    9. U disk, USB download,
    USB mouse, USB keyboard,
    USB printer, etc. ge input interface

  • Parameter nameParameter values
    TypeAST-100K
    Size10"
    Max. resolution1024*600
    Display typeTFT color touch screen (LED backlight), 65536 colors TFT LCD with LED Backlight, Max. colors 16-bit
    (hr) Backlight life20000 小时 /hrs
    (cd/m2) Display contrast200
    Touch panel4 线电阻式 4-wire analog touch panel
    CPUARM926EJ-S 32 位 RISC ARM9 32Bit
    Graphics accelerator 2D engine graphics accelerator
    Backup SRAM10:N/A 20:128KB
    (OS) Working memory32M
    (AP) Program memory8MB
    (Data File) Data memory10:N/A 20:128M
    Micro SD slotN/A
    Real-Time clock(RTC) Yes
    Max screen Up to 7999 pages
    Macro Unlimited macro instruction
    Serial interfaceCOM1:RS232/422/485 COM2:N/A COM3:RS232（RS485）
    USB1 host（USB1.0),1 slave（USB2.0)
    Ethernet1/2:N/A 4: （10/100M ）
    Front function keysN/A
    USB Front USBN/A
    Input voltage12-24VDC±10%
    Consumption20W
    Operating temperature-10-60℃
    Storage temperature-20-60℃
    Relative humidity10%-90%
    Ingress protectionNEMA4/IP65
    shock10-55Hz X, Y, Z three axial, 1G, 30 minute shock test
    EMIFCC Part 15 Class A
    CEEN61000-6-2,EN61000-6-4
    Cooling methodNatural cooling
    mm，Panel size(w * h, mm)270.1*212.1
    mm Cutout dimension (A*B mm)259.5*201.5
