APC-18.5“

CPU: Intel Skylake Core I3-6100U 2.3GHz, 2C4T, TDP 15W (optional I5-6200U, I7-6500U) Intel Skylake Celeron 3855U? 1.6GHz, 2C2T, TDP, 15W
Chipset: Intel SOC
System memory: 1*DDR4 2133MHz SODIMM, maximum support 16GB
BIOS: Insyde SPI 64M Flash
Storage: 1*2.5 inch SATA HDD disk, 6Gbps support SATA3.0 HDD/SSD, 1*M.2 (2242 B-Key)
Display: 18.5 inch LED TFT LCD & HDMI HD Graphics dual display, Intel? 510/520, HDMI support 4K resolution
Touch screen: projected capacitive screen, USB control
Extended 1*Mini PCIe (PCIe&: USB signal)

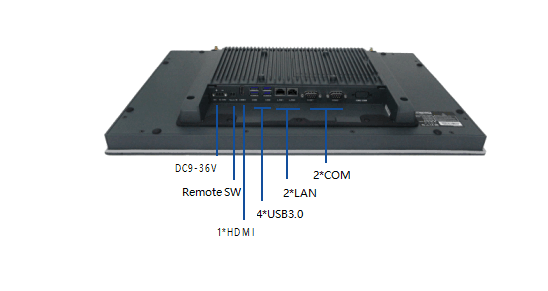

The rear panel I/O:
2*COM:2*RS232/422/485, DB9 interface
4*USB3.0 A
1*HDMI
2*RJ45
LAN: Intel I210AT chip, 10/100/1000 Mbps
Control and LED: 1*ATX switch, 2 pin remote switch interface, HDD indicator
Power requirements: DC: 9~36V.
Operating system: Windows 7, Windows 8.1, Windows 10, Linux
Structure design: Aluminum Alloy die-casting molding, flat panel, fin radiating shell
Working temperature: 0~50 degrees -HDD (-10 ~ 55, -SSD C) with air flow
Storage temperature: -20~60 degrees
Storage humidity: 10~95%@40 degrees, no condensation
Vibration: 10g peak acceleration (11ms), HDD operation
The impact of 1G 5~500Hz, with HDD running.
Installation: installation panel, VESA 100*100mm

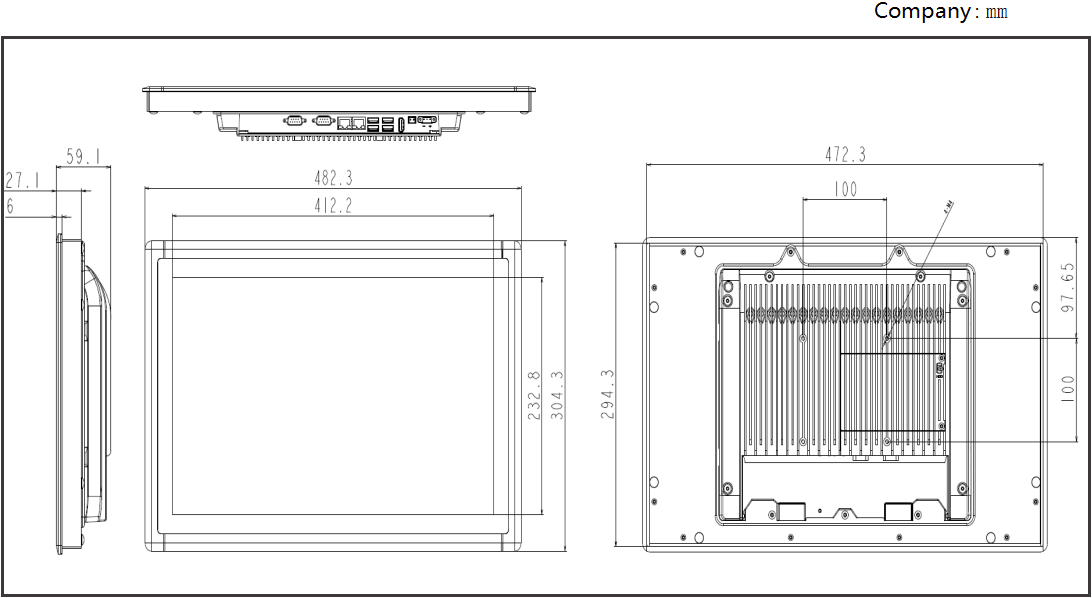

Size: (W*H*D): 482.3*304.6*59.1mm; panel mounting opening (W*H): 473.5*295.5mm
Net weight: 6.63kg
EMC: CE, FCC Class A
Type: 18.5 inch TFT LED
Resolution: 1366*768
Color depth: 16.7M
Lattice distance: 0.300*0.300 (mm)
Brightness (cd/m2): 300
Vision: 85 degrees (left), 85 degrees (right), 80 degrees, 80 degrees (on) (the)
Working temperature: 0~60 degrees
Backlight life: 50000 hours
Type: projected capacitive screen
Resolution: continuous
Transmittance: 90%
Controller: USB
Power consumption: 5V @300mA
Operating system: Windows/Linux
Click on the life: 3 billion times
