APC-12.1“

CPU: Intel Skylake Core I3-6100U 2.3GHz, 2C4T, TDP 15W (optional I5-6200U, I7-6500U) Intel Skylake Celeron 3855U 1.6GHz, 2C2T TDP, 15W
Chipset: Intel SOC
System memory: 1*DDR4 2133MHz SODIMM, maximum support 16GB
BIOS: Insyde SPI 64M Flash
Storage: 1*2.5 inch SATA HDD disk, 6Gbps support SATA3.0 HDD/SSD, 1*M.2 (2242 B-Key)
Display: 12.1 inch LED TFT LCD & HDMI Intel HD Graphics dual display, 510/520, HDMI support 4K resolution
Touch screen: 5 line resistive screen (projected capacitive screen optional), USB control
Extension: 1*Mini PCIe (PCIe&USB signal)

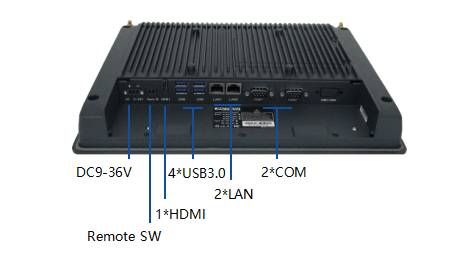

The rear panel I/O:
2*COM:2*RS232/422/485, DB9
4*USB3.0 A
1*HDMI
2*RJ45
The front panel of I/0: 1*USB2.0 A
LAN: Intel I210AT chip, 10/100/1000 Mbps
Control and LED: 1*ATX switch, 2 pin remote switch interface, HDD indicator
Power requirements: DC: 9~36V.
Operating system: Windows 7, Windows 8.1, Windows 10, Linux
Structure design: Aluminum Alloy die-casting molding, flat panel, fin radiating shell
Working temperature: 0~50 degrees -HDD (-10 ~ 55 DEG -SSD), with air flow
Storage temperature: -20~60 degrees
Storage humidity: 10~95%@40 degrees, no condensation
Vibration: 10g peak acceleration (11ms), HDD operation
The impact of 1G 5~500Hz, with HDD running.
Installation: installation panel, VESA 75*75mm

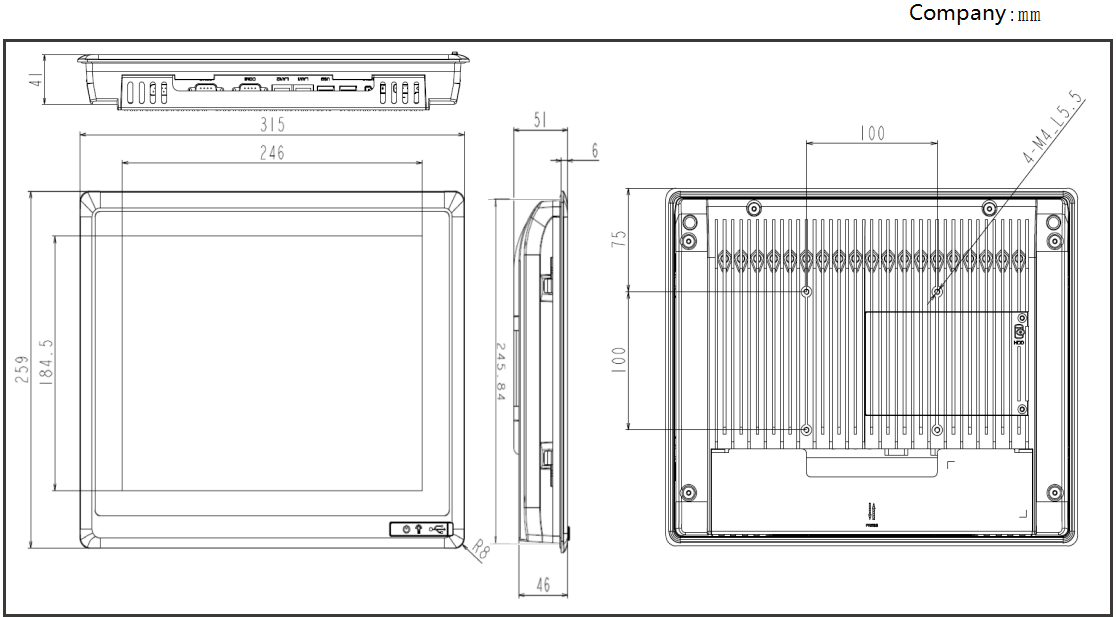

Size: (W*H*D): 315*259*51mm; panel mounting opening (W*H): 303*247mm
Net weight: 2.80kg
EMC: CE, FCC Class A
Type: 12.1 inch TFT LED
Resolution: 1024*768
Color depth: 16.2M
Lattice distance: 0.240*0.240 (mm)
Brightness (cd/m2): 500
Vision: 80 (left), 80 (right), 70 degrees, 70 degrees (on) (the)
Working temperature: -30~70 degrees
Backlight life: 50000 hours
Type: 5 line resistance screen projected capacitive screen
Resolution: consecutive
Transmittance: 83% 90%
Controller: USB
Power consumption: 5V @200mA 5V @300mA
Operating system: Windows/Linux
Click on the life: 3000 million
