Aluminum profile shell without fan heat dissipation design
Intel Skylake-U Celeron and Core I3/I5/I7 CPU
1*DDR4 2133MHz SODIMM memory, maximum 16GB
1*HDMI, 1*VGA double display, HDMI support 4K
2*Gig LAN, 4*USB3.0, 3*USB2.0 (1 of which are built-in)
6*COM and COM6 are optional for 8 bit DIO, Audio out and Mic.
1*Mini PCIe (PCIe+USB) full high card, support 4G/Wifi/BT
1*mSATA, 1*2.5 “SATA shock absorber”
DC 9~19V wide voltage power supply

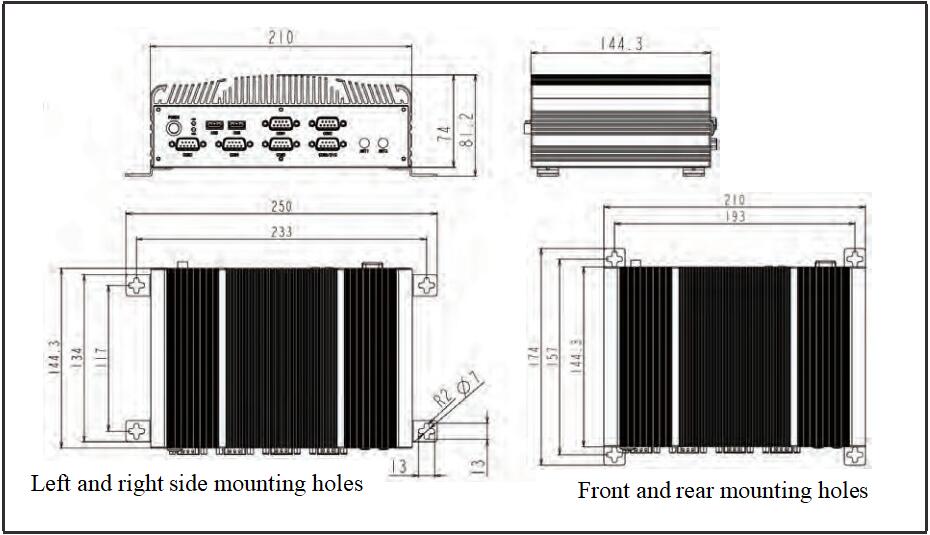

Flexible mechanical design to desktop mounting
CPU: Sixth Generation BGA Intel Skylake-U Celeron and Core I3/I5/I7 ULT Soc TDP 15W: Celeron 3855U 1.6GHz Dual Core-U: I3-6100U 2.3GHz Dual Core Four Thread, I5-6200U 2.3-2.8GHz Dual Core Four Thread, I7-6500U 2.5-3.1GHz Dual Core Four Thread
System memory: 1*260-Pin SODIMM, single channel DDR4 2133MHz, maximum 16GB
Extended Interface: 1 * Full-length Mini PCIe with PCIe X1 + USB signal with SIM card slot, supporting 4G card wireless network and Wifi / BT wireless communication module
Display: CPU integrates Intel Gen.9 HD Graphics, HEVC/H265 HW HD codec, HDMI highest resolution 3840*2160@30Hz, VGA highest resolution 2650*1600@60Hz, optional support 8-bit LVDS display interface (check with VGA interface)
Audio: Realtek ALC269 audio, Audio out and MIC
Ethernet: 2*Intel I211AT PCIe Gig. Ethernet, 10/100/1000Mbps adaptive;
Keyboard and mouse: USB keyboard and mouse
Storage: 1*2.5 “HDD SATA3 shock absorption drive rack; 1*mSATA all high card”
DIO: optional 8 bit TTL signal programmable input and output (with COM1 interface check) optional 2*USB2.0.
I-port: PS2 keyboard mouse or Mini PCIe function card interface, such as parallel port or serial port 2*RJ45 Gig-LAN

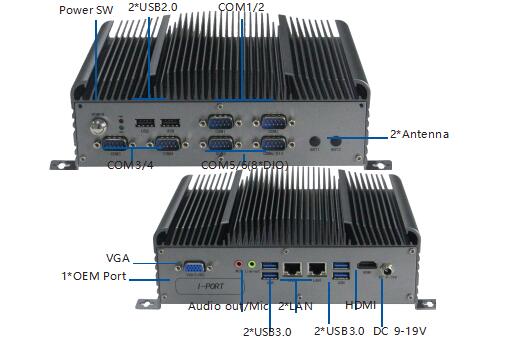

I/O interface: 4*USB3.0 Type A (rear panel), 2*USB2.0 Type A (front panel), 1*USB2.0 Type A built-in
8 bit DIO Db9 header (front panel) and COM6 DB9 interface check.
2 * RS232 (3 line signal) / 485 DB9 male, 3 * RS232 (9 line signal) DB9 male, 1 * RS232 (3 line signal) / TTL DB9 male (front panel)
1*Audio-out and 1*MIC 3.5 audio interface (rear panel)
1*HDMI +1*VGA (rear panel) and 8 bit LVDS signal check
Indicator: 1* power indicator, 1* hard drive indicator (front panel)
Control switch: 1* power switch (front panel), stainless steel metal button;
Power requirements: DC 9-19V input, M6 anti-stripping DC-Jack interface (back panel), with 12V/5A power adapter power consumption: TBD
Watchdog timer: programmable timeout interrupt or system reset, 1 to 255 seconds.
Operating system: Windows 7, Windows 10, Linux Fedora Ubuntu
