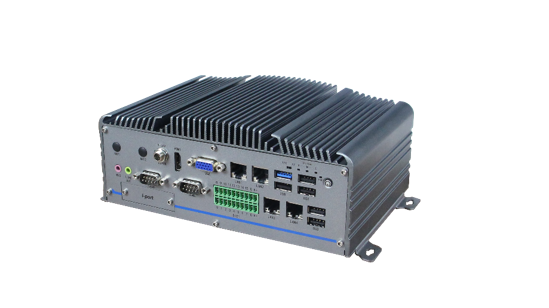

Universal aluminum profile shell without fan heat dissipation design
Intel Baytrail Celeron J1900 2.0-2.42G CPU 1*DDR3L 1333MHz SODIMM memory, maximum 8GB
4*Intel I210-AT PCIe Gig LAN
1*HDMI and 1*VGA dual display, audio Line out and Mic
1*USB3.0, 6*USB2.0,6*COM, 24 bit DIO
1*Mini PCIe (PCIe+USB), 1*Mini PCIe (SATA+USB)
1*3.5 “SATA3 driver rack, 1*mSATA
DC 9~36V wide voltage DC power supply
CPU: Intel BayTrac-D Cylon J1900, main frequency 2-2.42 GHz, four cores and four wires, 2M cache, 22nm, TDP 10W
System memory: 1 x DDR3L 1333 MHz SODIMM, MAX 8GB
Extended interface: 1 * full-length Mini PCIE, with PCIe X1 (no PCIe 4LAN) and USB signal, with SIM card slot, support 4G LTE, WiFi / BT function; 1 * full-length Mini PCIE with USB + SATA3 signal
Display: Intel HD graphics, VGA resolution 1920 *1200@60Hz, HDMI maximum resolution 1920 *1080@60Hz, dual display interface support synchronous asynchronous display, support OpenGL 3.2, DirectX 11, OpenCL 1.2, MPGE2/H.264 RealTEK
Audio: ALC662 HD audio, external circuit and microphone interface, built-in dual channel 3W power amplifier pin interface
Ethernet: 4 x Intel I210AT PCIE Gigabit Ethernet, 10/100 / 1000 meter adaptive
Keyboard and mouse: USB keyboard and mouse
Storage: 1 *3.5 “HDD SATA 3 drive frame, speed 6 Gbps, drive frame assembly aluminum heat dissipation; 1 *MSATA full high card, support AHCI
Dio: 24 bit TTL signal, programmable input and output
I port: supports 1 x USB2.0 or other small PCIE function card interfaces (such as CAN bus and GIG). LAN.
I/O interface: RJ45 LAN with LED (front panel);
1 x USB3.0 A and 5 x USB2.0 A (front panel), with 1 x USB2.0 built in.
2 x 10PIN Phoenix terminal, 16 DIO (front panel), 2 x 5PIN Phoenix terminal, 8 DIO (rear panel)
2 * RS232 / 422/485 serial port D9 and 2 x RS232 serial port D9 (rear panel), 2 * RS232/485 serial port D9 (front panel)
1 x HDMI and 1 x VGA (front panel); 1 x external line and 1 x MIC dual 3.5mm audio interface (front panel).
1 * 2PIN terminal, remote control switch signal interface (rear panel)
Indicators: 1 * power indicator, 1 * hard disk indicator, 3 * CPU temperature level indicator (red for high temperature, yellow for normal temperature, green for low temperature)
Power requirements: DC 9 to 36V input, D- socket anti D8 M8 nut interface (front panel), power consumption: TBD
Watchdog timer: programmable timeout interrupt or system reset, 1 to 255 seconds.
Operating system: Windows 7, Windows 8.1, Windows 10, Linux FEDORA Ubuntu
Structure: U type aluminum instant heat profile, SGCC before and after baking.
Color: silver gray
Installation: Desktop

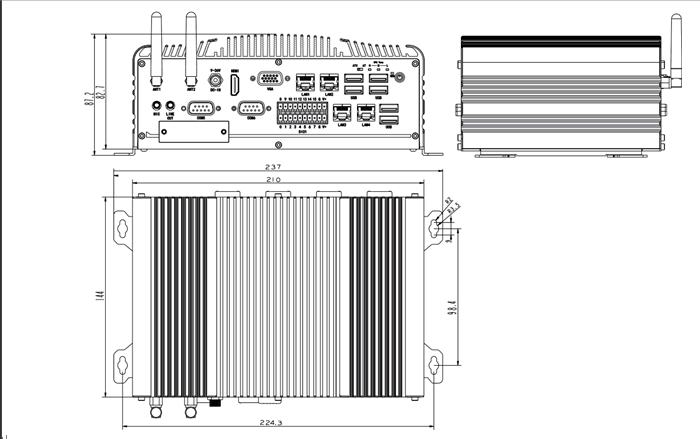

Size: (W*H*D): 210 x 140 x 82.7mm
Net weight: TBD
Working temperature: – 20 C ~ 70 C without fan, wide temperature SSD;
Storage temperature: -C degrees 40 C ~ 85 C
Storage humidity: 10 ~ 90% @ 40 degrees, without condensation.
Vibration: 5 GRMS / 5 ~ 500 Hz / random / working state (SSD); 1 GRMS / 5 ~ 500 Hz / random / working state (HDD)
Impact: 50g peak acceleration (continuous 11MS) (SSD); 20g peak acceleration (11MS) (HDD)
EMC CE/FCC class A
