Aluminum profile shell, CPU fan free heat dissipation design
Intel Kabylake-S/Skylake-S Core I3/I5/I7 CPU
2*DDR4 2133/2400MHz SODIMM memory, maximum 32GB MXM3.1 NVIDIA/AMD GPU module
1*DP, 1*HDMI and 1*VGA three showed nucleation, 3*DP and 1*HDMI four showed only.
3*Gig LAN, 4*POE, 6*USB3.0, 3*USB2.0
2*COM, 16 bit isolated DIO, Audio out and Mic
2*Mini PCIe (PCIe+USB), 1*M.2 2242 B-Key
1*2.5 “SATA3 drive rack, 1*mSATA; whole machine shock absorber mounting rack.
DC 6~48V wide voltage power supply, ITPS vehicle management function
CPU: 6th-generation Intel Skyl. -S / 7th-generation Intel Kabylake-S Celeron / Pentium / Core I 3 / I5 / I7 CPU, LGA 1151 slot T (TE) power optimization, TDP 35W fan-free heat dissipation
Chipset: Intel Q170, optional Intel H110
System memory: 2 x 260 pin SODIMM, dual channel DDR4 2133 /2400 MHz, maximum 32GB
Extended interface: 1 * full-length miniature PCIe with PCIe X1 + USB signal with SIM card slot, 1 * M. 2242 with PCIe X1 + SATA3 + USB signal with SIM card slot B key,
1 * full-length mSATA (SATA3 + USB), 1 * half-length Mini PCIe, with PCIeX 1 and USB signals, supporting dual 4G card wireless networks and Wifi / BT wireless communications
GPU&Display: Intel Gen.9 HD graphics, HEVC/H265 HW HD codec, DP highest resolution 4096*2304@60Hz, HDMI highest resolution 3840*2160@30Hz, VGA highest resolution 2650*1600@60Hz, support independent three displays
Audio: RealTek ALC62VD audio, audio output and microphone
Ethernet: 2 *Intel I210AT PCIE Gigabit Network, 10/100/1000 MbPS Adaptive; 1 *Intel I219LM PCIE Gigabit Network Supports IVPRO
4 x Intel I210AT PCIE gigabit network, full bandwidth POE function, single TDP power 154W. Optional 8 x I210 in Gigabit Network
Storage: 2 * 2.5 “SATA shock absorber drive frame, one mounted on aluminum plate to enhance heat dissipation, one easy insert design; 1 * mSATA full high card; 1 * M. 2242B key
DIO: 8/12 bit 2.5KV optical isolation input (H: 5-24V, L: 0-1.5V), 8/12 bit 2.5KV optical isolation output (100mA); optional 16 bit TTL programmable input and output
I- port: 1 x LPT, 1 x USB2.0, 16 bit DIO, or Mini PCIE and M.2 function card interface, such as serial port.

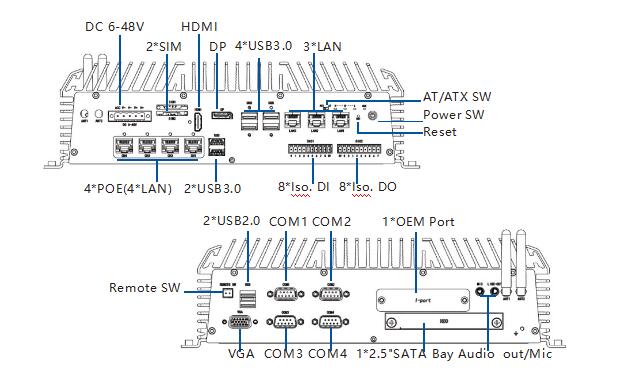

I/O interface: 3 *RJ45 GIG LAN, 4 *RJ45 GIG POE anti-loosening screw hole (front panel) optional 8 *RJ45 GIG LAN
6 x USB3.0 A (front panel); 2 x USB2.0 A (rear panel), 1 x USB2.0 built in.
8-bit isolated output 1*10 pin terminal and 8-bit isolated input 1*10 pin terminal; optional 24-bit isolated DIO 2*14 pin terminal (front panel);
2 * RS232 / 422/485 Db9 header (rear panel), 2 x RS232B9 header (backplane)
1 * audio output and 1 * microphone 3.5 audio interface (rear panel)
1 * HDMI+ 1 x DP (front panel) + 1 x VGA (rear panel)
Indicators: 1 * power indicator, 1 * hard disk indicator, 3 * CPU temperature level indicator (red for alarm, yellow for high temperature, green for normal temperature)
Control switch: 1 * power switch, 1 * reset switch (front panel); 1 * 2 pin terminal switch signal (back panel); 1 * AT / ATX selector switch (front panel)
Power requirements: DC 6-48V input, 5-pin terminal interface (front panel), power consumption: TDP 19/2.0A (I5-7500T CPU, 4GB Ram, 128G SSD)
Watchdog timer: programmable timeout interrupt or system reset, 1-255 seconds.
Operating system: Windows 7, Windows 10, Linux FEDORA Ubuntu
