Aluminum profile shell, CPU fan free heat dissipation design
Intel Kabylake-S/Skylake-S Core I3/I5/I7 CPU
2*DDR4 2133/2400 MHz SODIMM memory, maximum 32GB MXM 3.1 NVIDIA/AMD GPU module
1*DP, 1*HDMI and 1*VGA three showed nucleation, 3*DP and 1*HDMI four showed only.
3*Gig LAN, 4*POE, 6*USB3.0, 3*USB2.0
2*COM, 16 bit isolated DIO, Audio out and Mic 2*Mini PCIe (PCIe+USB), 1*M.2 2242 B-Key

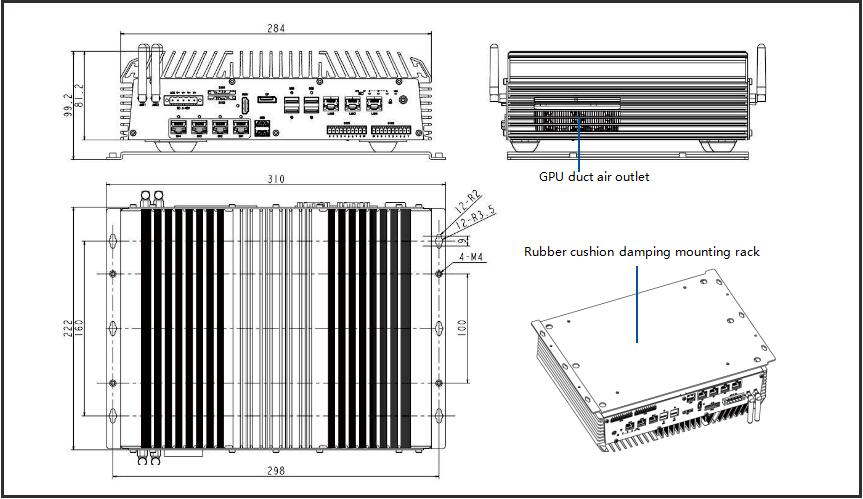

1*2.5 “SATA3 drive rack, 1*mSATA; whole machine shock absorber mounting rack.
DC 6~48V wide voltage power supply, ITPS vehicle management function
CPU: 6th Generation Intel Skylake-S/7th Generation Intel Kabylake-SCeleron/Pentium/Core I3/I5/I7 CPU, LGA 1151 Slot T (TE) Power Optimization Edition, TDP 35W Fanless Heat Dissipation
Chipset: Intel Q170
System memory: 2*260-Pin SODIMM, dual channel DDR4 2133/2400MHz, Max 32GB
Extended interface: 1 * full-length Mini PCIe with PCIe X1 + USB signal with SIM card slot, 1 * half-length Mini PCIe with PCIe X1 + USB signal, 1 * M. 2 2242 B-key with SIM card slot,
1* full-length mSATA (SATA3+USB), supports dual 4G card wireless network, Wifi/BT communication and GPS/BDS navigation synchronously.
GPU & Display: Intel Gen. 9 HD Graphics, HEVC / H265 HW HD codec, DPs and HDMIs for dual 4K ultra high definition display
1 * MXM3.1 GPU module, NVIDIA Gforce GTX full series and AMD RX series up to 120W power GPU, 3 * DP and 1 * HDMI 44K display
Audio: Realtek ALC662VD audio, Audio out and MIC
Ethernet: 2 * Intel I210AT PCIe Gigabit Network, 10/100/1000Mbps Adaptive; 1 * Intel I219LM PCIe Gigabit Network Supports iVpro
4*Intel I210AT PCIe gigabit network, full bandwidth POE, single channel TDP 15.4W power output
Storage: 1*2.5 “HDD SATA3 shock absorption drive rack; 1*mSATA full high card; 1*M.2 2242 B-key total three storage.
DIO: 8-bit 2.5KV optical isolation input (H: 5-24V, L: 0-1.5V), 8-bit 2.5KV optical isolation output (100mA), optional 16-bit TTL signal programmable input and output optional
I-port 1*LPT, 16 bit DIO, or 2*Mini PCIe and M.2 function card interface, such as CAN BUS

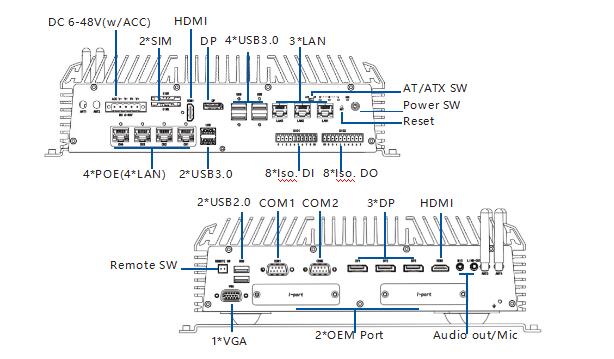

I/O interface: 2*RJ45 Gig-LAN, 4*RJ45 Gig-POE anti fastener bolt hole (front panel)
6*USB3.0 Type A (front panel); 2*USB2.0 Type A (rear panel), 1*USB2.0 Type A built-in
8-bit isolated output 1*10-pin terminal and 8-bit isolated input 1*10-pin terminal; optional 16-bit DIO 2*10-pin terminal (front panel);
2*RS232/422/485 DB9 header (rear panel)
1*Audio-out and 1*MIC 3.5 audio interface (rear panel)
CPU core displays 1*HDMI +1*DP+1*VGA (front panel); GPU shows 3*DP+1*HDMI (rear panel).
Indicator: 1 * power indicator, 1 * hard disk indicator, 3 * CPU temperature level indicator (Red for alarm, Yellow for high temperature, Green for normal temperature)
Control switch: 1 * power switch, 1 * reset switch (front panel); 1 * 2 pin terminal switch signal (back panel); 1 * AT / ATX selector switch (front panel)
Power requirements: DC 6-48V input, with ACC signal, 5-pin terminal interface (front panel), power consumption: TDP 24V/4.83A (I5-7500T CPU + GTX 1060M GPU)
Watchdog timer: programmable timeout interrupt or system reset, 1 to 255 seconds.
Operating system: Windows 7, Windows 10, Linux Fedora Ubuntu
